Variable Area Flow Meters

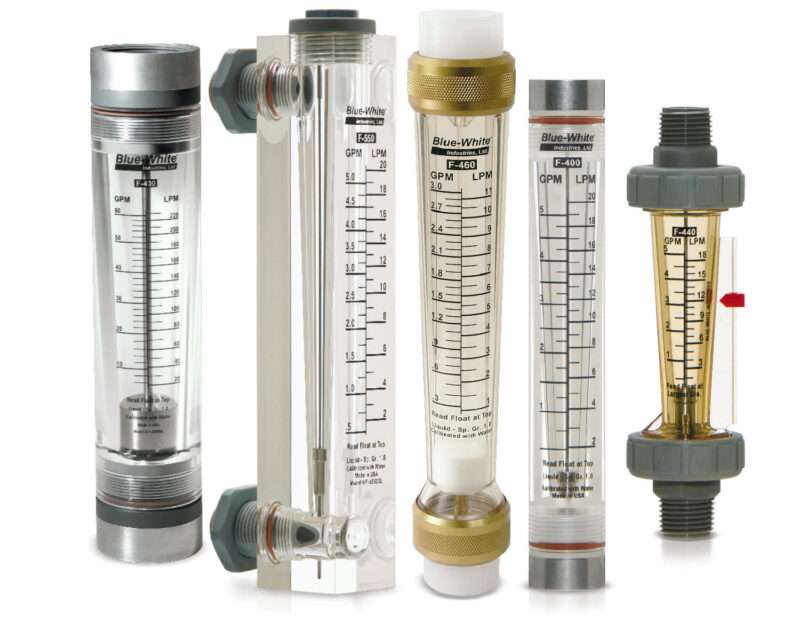

Blue-White® Variable Area Flow Meters
Variable Area Flow Meters (Rotameters) are a cost-effective solution for applications involving the measurement of industrial process water. Blue-White® offers direct-reading variable area flow meters to provide an accurate, safe, and economical method of measuring flow.
Explore Variable Area Flow Meters (Acrylic)
F-300
Pitot Tube Acrylic Flow Meter
| GPM | LPM |
|---|---|
| 2 - 1900 | 8 - 7200 |
| PSI | Bar |
| 75 | 5.2 |
| Pipe Sizes | |
| 1”, 1¼”, 1½”, 2”, 2½”, 3”, 4”, 6”, 8” | |

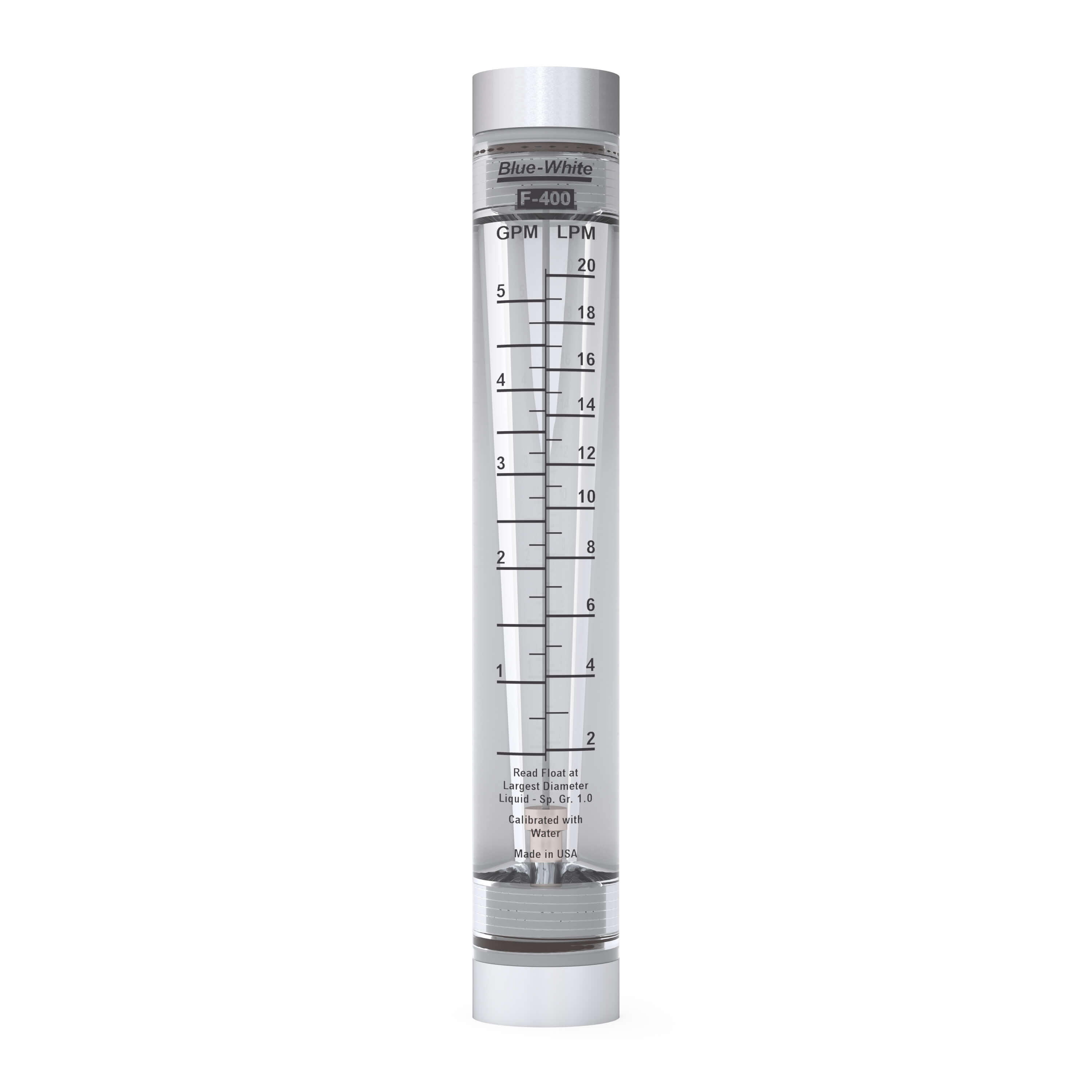

F-400
Acrylic Flow Meter
| GPM | LPM |
|---|---|
| .025 - 5 | .1 - 20 |
| PSI | Bar |
| 150 | 10.3 |
| Pipe Sizes | |
| ¼”, ⅜” , ½” F/NPT | |
F-410
Acrylic Flow Meter
| GPM | LPM |
|---|---|
| 1 - 20 | 4 - 80 |
| PSI | Bar |
| 150 | 10.3 |
| Pipe Sizes | |
| ¾”, 1” F/NPT | |
F-420
Acrylic Flow Meter
| GPM | LPM |
|---|---|
| 5 - 50 | 20 - 200 |
| PSI | Bar |
| 130 | 8.9 |
| Pipe Sizes | |
| 1” F/NPT, 1½” M/NPT | |

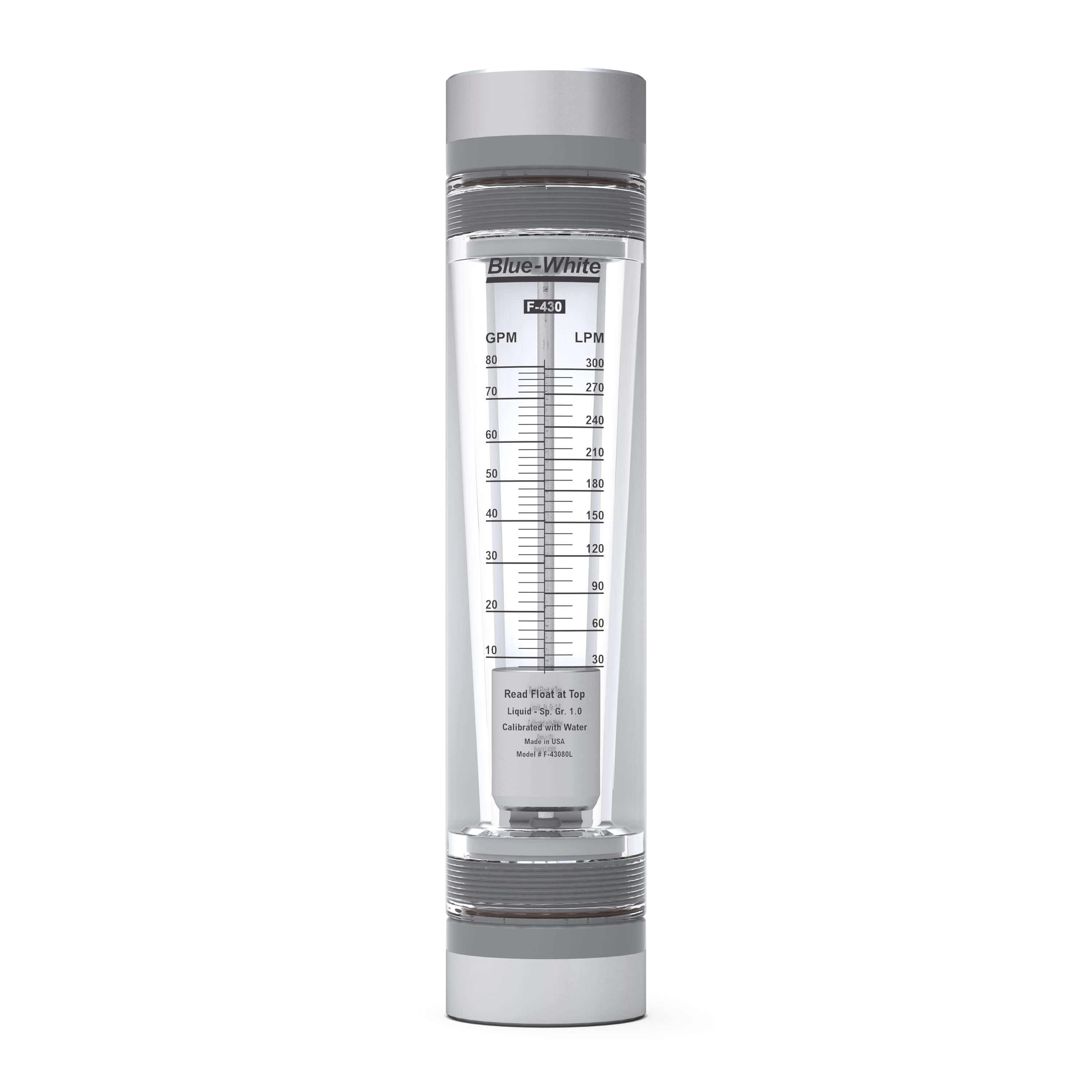

F-430
Acrylic Flow Meter
| GPM | LPM |
|---|---|
| 4 - 100 | 15 - 375 |
| PSI | Bar |
| 130 | 8.9 |
| Pipe Sizes | |
| 1½”, 2” F/NPT | |

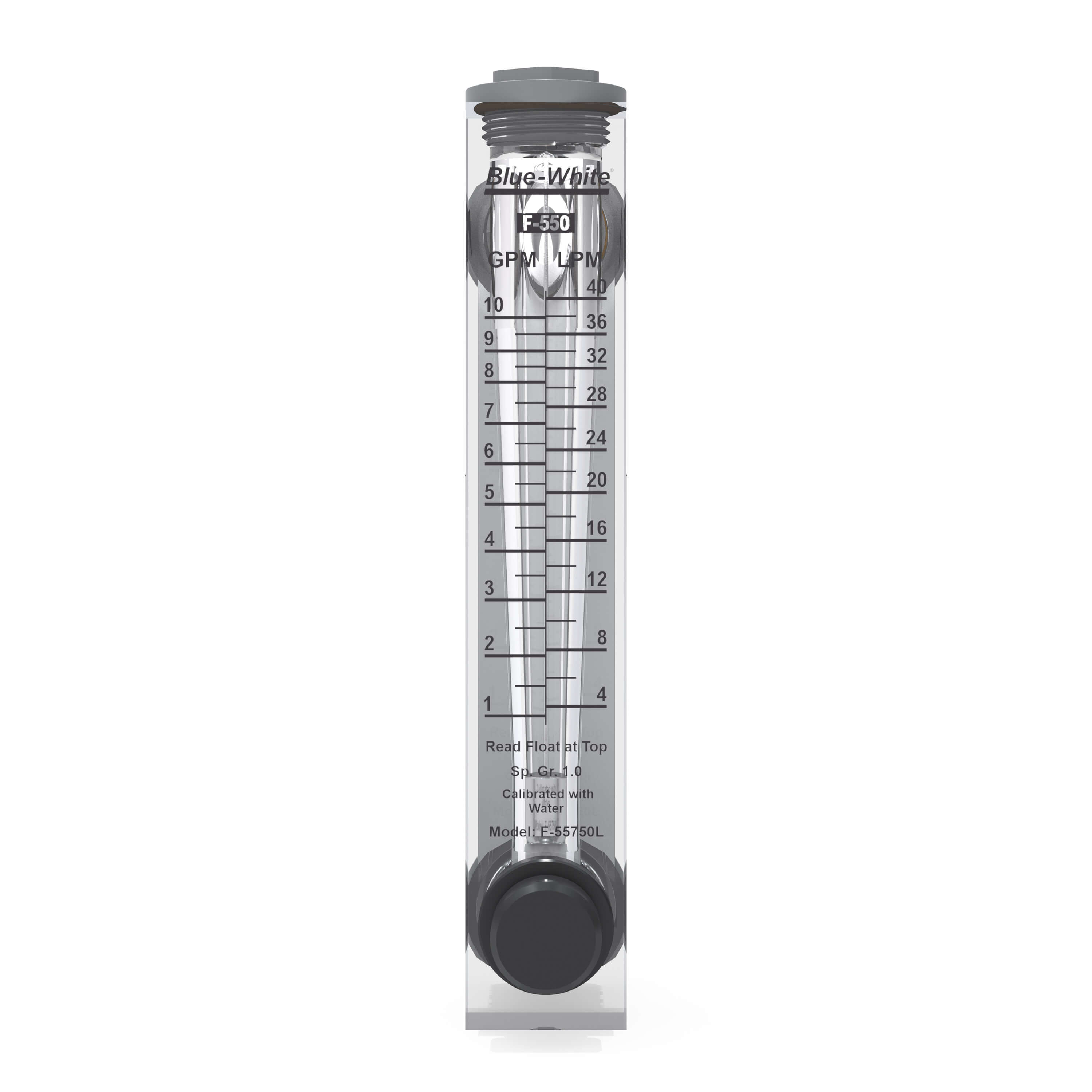

F-550
Acrylic Flow Meter
| GPM | LPM |
|---|---|
| .025 - 20 | .1 - 75 |
| PSI | Bar |
| 250 | 17.2 |
| Pipe Sizes | |
| 1/4”, 3/8”, 3/4” and 1” male NPT | |
Explore Variable Area Flow Meters (Polysulfone)

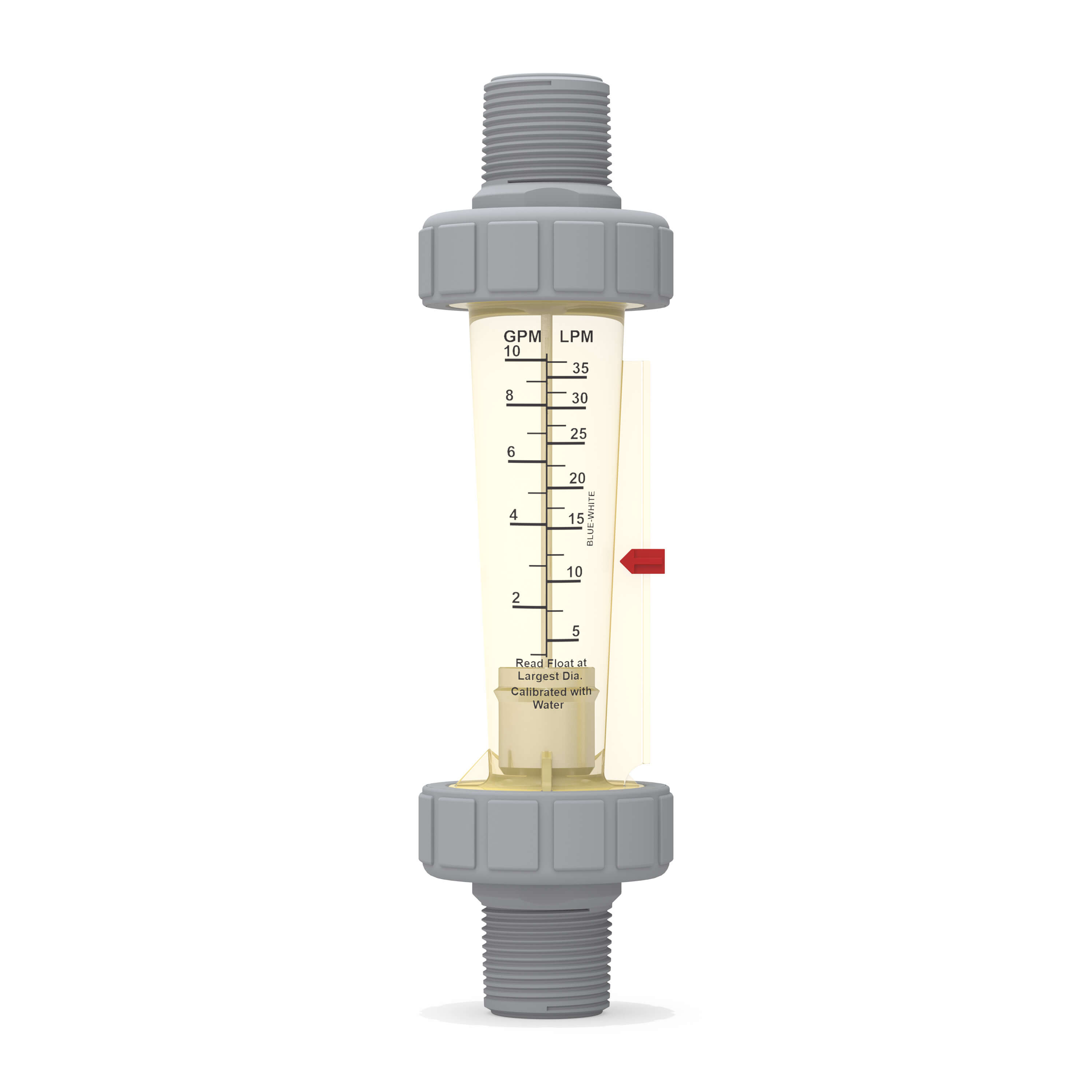

F-440
Polysulfone Flow Meter
| GPM | LPM |
|---|---|
| .025 - 10 | .1 - 37.5 |
| PSI | Bar |
| 175 | 12 |
| Pipe Sizes | |
| ⅜”, ½”, ¾” M/NPT | |
F-450
Polysulfone Flow Meter
| GPM | LPM |
|---|---|
| .1 - 10 | .4 - 40 |
| PSI | Bar |
| 175 | 12 |
| Pipe Sizes | |
| ⅜”, ½”, ¾” F/NPT | |
F-451
Polysulfone Flow Meter
| GPM | LPM |
|---|---|
| .5 - 40 | 2 - 155 |
| PSI | Bar |
| 150 | 10.3 |
| Pipe Sizes | |
| 1” F/NPT (Polysulfone), 1½” F/NPT (PVC) | |
F-452
Polysulfone Flow Meter
| GPM | LPM |
|---|---|
| 2 - 175 | 8 - 675 |
| PSI | Bar |
| 150 | 10.3 |
| Pipe Sizes | |
| 2” F/NPT | |

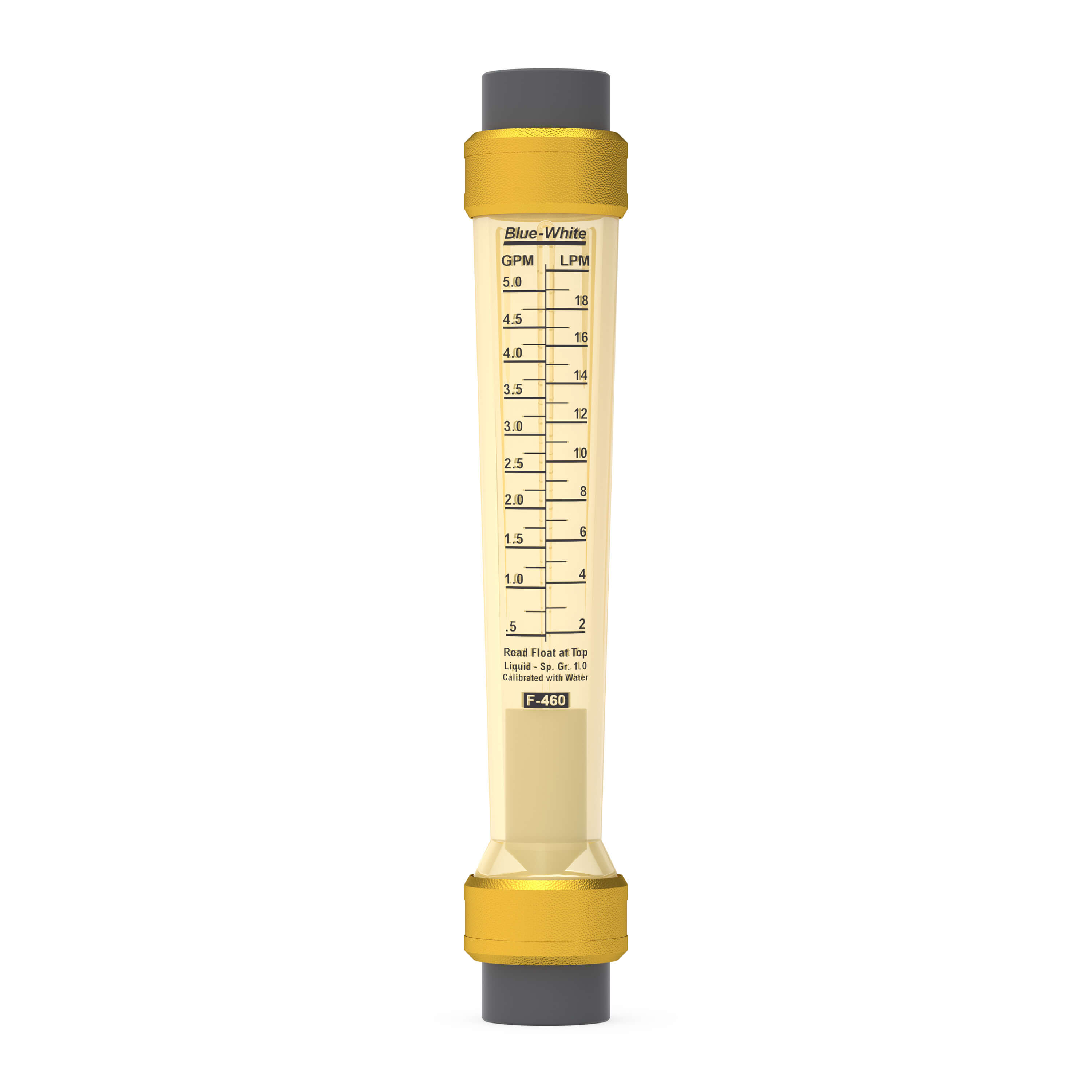

F-460
Polysulfone Flow Meter
| GPM | LPM |
|---|---|
| .1 - 5 | .4 - 20 |
| PSI | Bar |
| 150 | 10.3 |
| Pipe Sizes | |
| 1/2″ and 3/4″ female NPT fittings | |
F-461
Polysulfone Flow Meter
| GPM | LPM |
|---|---|
| 1 - 35 | 4 - 130 |
| PSI | Bar |
| 150 | 10.3 |
| Pipe Sizes | |
| 1″ female NPT fittings | |
F-462
Polysulfone Flow Meter
| GPM | LPM |
|---|---|
| 2 - 80 | 8 - 300 |
| PSI | Bar |
| 150 | 10.3 |
| Pipe Sizes | |
| 2″ female NPT fittings | |
Compare Flow Meters
| Features | F-400 | F-430 | F-550 | F-440 | F-460 |
|---|---|---|---|---|---|
| Product |  |
 |
 |
 |
 |
| Flow Range |
.025 - 5 GPH
.1 - 20 LPM |
4 - 100 GPH
15 - 375 LPM |
.025 - 20 GPH
.1 - 75 LPM |
.025 - 10 GPH
.1 - 37.5 LPM |
.1 - 5 GPH
.4 - 20 LPM |
| Acrylic meter body | |||||
| Polysulfone meter body to resist high temps and pressure | |||||
| Durable, highly polished, one-piece meter body | |||||
| Annealed for added strength | |||||
| Acceptable in direct sunlight | |||||
| Direct reading permanent scale | |||||
| White back reflector for easy reading | |||||
| 316 stainless floats and guide rods | |||||
| PTFE float and float guides available | |||||
| Optional PVC or PVDF Adapters for corrosive applications | |||||
| Rib guided float | |||||
| Bulkhead nuts attached directly to the inside panel | |||||
| Optional adjustable flow | |||||
| Used in UltraPure Applications | |||||
| No metal in the fluid path | |||||
| Compact size for tight installations | |||||
| Union connections for easy installation and maintenance | |||||
| Adjustable flow rate setpoint indicator |
How do Variable Area Flow Meters Work?
Blue-White® Variable Area Flow Meters (rotameters) measure the volumetric flow of liquids. They have an orifice and a float that can move vertically inside a tube with an increasing diameter from bottom to top. As the fluid flows through the tube, it forces the float upward. The clearance space (annular area between the float and the tube wall) between the float and the tube increases as the float moves toward the top of the meter. The larger clearance area towards the top requires more fluid to force the float higher. The greater the flow, the higher the float is raised.
Advantages of a Variable Area Flow Meter
Applications
- Wastewater Treatment
- Potable Water Treatment
- RO Water Systems
- Semiconductor Fabrication
- Commercial RO Water Systems
- Commercial Aquariums
- Industrial Process
Explore Articles
Variable Area Flow Meter FAQ
A variable area flow meter is a type of differential pressure flow meter. Variable area flow meters are simple and versatile devices that operate at a relatively constant pressure drop and measure liquids, gases, and steam flow.
One of the earliest and most well-known flow measurement principles is the variable area flow measurement approach. As a result, of all the flow-measuring technologies now on the market, variable area flowmeters (commonly referred to as rotameters) have one of the largest installed bases. This technology has several benefits, including dependability, accuracy, simplicity of installation, and readability. Also, these meters are frequently used because the measurement method is mechanical in nature and can be used in instances without power.
The following are the three main types of variable area flow meters:
Glass Tube Variable Flow Meters
The glass tube indicating type is the most common variable area flow meter form. The float is machined from metal, glass, or plastic, while the tube is made from borosilicate glass. The meter’s scale can be calibrated to read air or water directly, or it may have a scale that reads a percentage of range or an arbitrary scale that can be used with conversion equations or charts.
Metal Tube Flow Meters
When strong working pressure, a wide temperature range, water hammering, or other pressures would break glass metering tubes, stainless steel, metal tube flow meters are utilized. The majority of fluids, including corrosive liquids and gasses, can be used with metal tube flow meters.
Plastic Tube Variable Flow Meters
Several versions of variable area flow meters use plastic tubes because of their inexpensive cost and great impact strength. Usually made of polycarbonate, they have either metal or plastic end fittings. While installing plastic end fittings, care must be taken to prevent thread distortion. For applications where metal wetted parts cannot be tolerated, for as with deionized water or corrosives, meters with an all-plastic structure are available.
