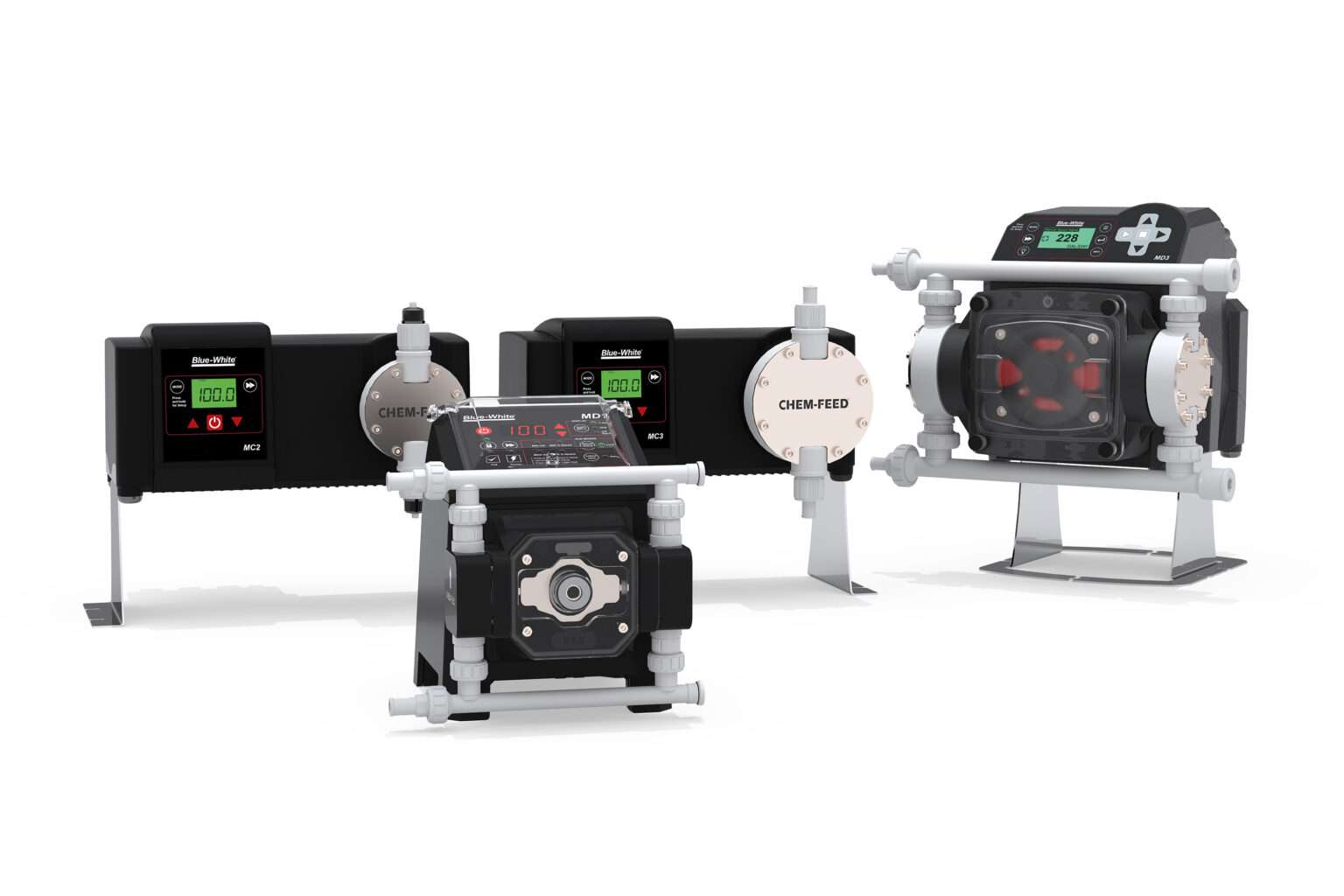

Municipal Diaphragm Pumps

Diaphragm Pumps

Blue-White’s CHEM-FEED® Diaphragm Pumps reliably feed chemicals in high-pressure industrial applications with minimal downtime.

Explore municipal diaphragm pumps in single and multi-diaphragm configurations.



Diaphragm Pumps

Explore Municipal Diaphragm Pumps

CHEM-FEED® MD1 Multi-Diaphragm Pump

MD1
CHEM-FEED® Multi-Diaphragm Metering Pump

GPH LPH
.0007 - 7.70 .0029 - 29.15
PSI Bar
150 10.3

CHEM-FEED® MD3 Multi-Diaphragm Metering Pump for Municipal Water and Waste Water Treatment Applications

MD3
CHEM-FEED® Multi-Diaphragm Metering Pump

GPH LPH
.03 - 52.6 .10 - 199
PSI Bar
145 10

C2 scaled

C2
CHEM-FEED® Diaphragm Metering Pump

GPH LPH
.02 - 16.5 .09 - 62.5
PSI Bar
175 12

C3 scaled

C3
CHEM-FEED® Diaphragm Metering Pump

GPH LPH
.3 - 40 .1 - 154
PSI Bar
150 10.3

How do Diaphragm Pumps Work?

Diaphragm pumps work by flexing the diaphragm out of the displacement chamber.

When the diaphragm moves out, the volume of the pump chamber increases and causes the pressure within the chamber to decrease and draw in fluid.

Advantages of a Diaphragm Metering Pump

  • Low cost of ownership

    Well maintained diaphragm metering pumps cost you less to operate over time

  • Energy efficient

    Diaphragm pumps use more motor torque on the forward (power) stroke, but far less on the back stroke

  • High pressure capabilities

    Overcoming line pressure is easier with properly sized diaphragm metering pumps

  • Exclusive longer lasting diaphragm

    Blue-White's patented DiaFlex® diaphragms last the life of the pump

Compare CHEM-FEED® Features

CHEM-FEED® Features C2 C3 MD1 MD3
CHEM-FEED® Product C2 C3 MD1 MD3
Flow Output Range .02 - 16.5 GPH
(.09 - 62.5 LPH)
.3 - 40 GPH
(.1 - 154 LPH)
.0008 - 8.5 GPH
(.003 - 32.2 LPH)
.03 - 52.6 GPH
(.10 - 199 LPH)
Turndown 200:1 200:1 10,000:1 2,000:1
Warranty 2 YEAR 2 YEAR 5 YEAR 5 YEAR
Variable Speed DC Motor BRUSH BRUSH BRUSHLESS BRUSHLESS
Dia-Flex® PVDF Single-layer Diaphragm YES YES YES YES
DFD (Diaphragm Failure Detection) YES YES YES YES
Protective LCD Snap-on Cover YES YES YES NO
Maintenance Mode NO NO NO YES
Input: Remote Start/Stop YES YES YES YES
Input: 4-20mA YES YES YES YES
Input: Frequency (Pulsed) YES YES NO YES
Output: 4-20mA YES YES YES YES
Proportional Dosing NO NO NO YES
Password Protect (PIN) NO NO LOCKOUT BUTTON YES
