Benefits Include
Lower cost of ownership
Rollers can be replaced individually, eliminating the need to purchase an entire roller assembly.
Ease of maintenance
New roller assembly design allows for safer and easier tube replacement without a tube installation tool.
Enhanced flexibility
Switch to different tube models by
changing the squeeze rollers, not the
entire roller assembly.

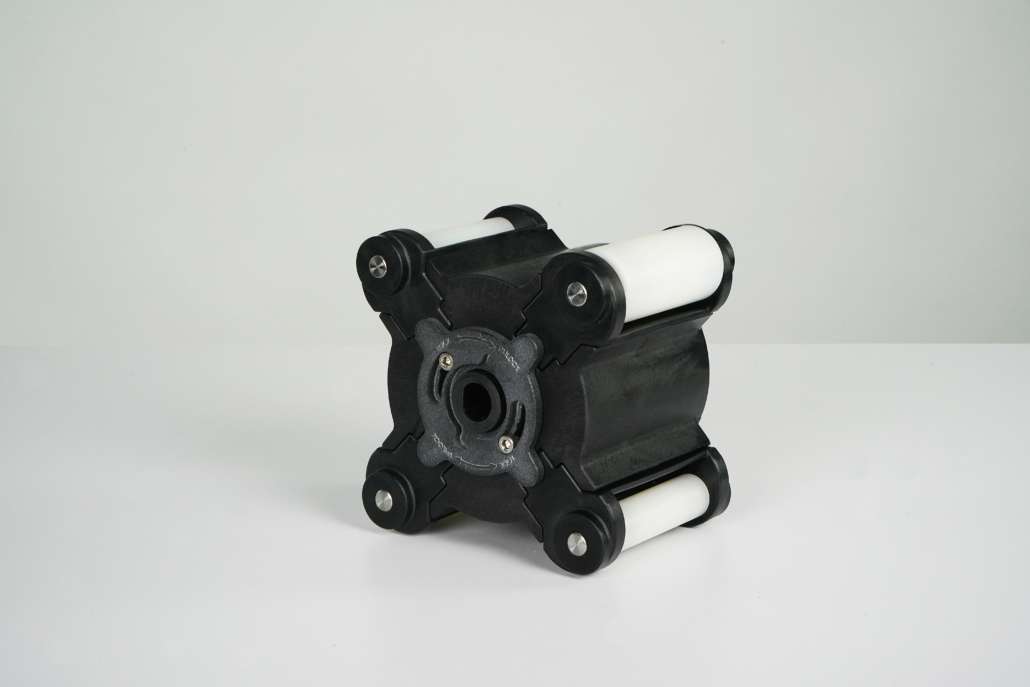

Old vs New
New M4 Roller Assembly Installation
New A4 Roller Assembly Installation
New Roller Assembly Catalog Numbers
| NO. | TUBE COMPATIBILITY | CATALOG NO. |
|---|---|---|
| 1 | NL / NP | A4-MNL-R |
| 2 | TH / TK / TKK / THH | A4-MTH-R |
| 3 | NH / NK / NJ / NHH / NHL / NHHL | A4-MNH-R |
| 4 | NKL / NKKL | A4-MNKL-R |
| 5 | GH / GK / GKK | A4-MGH-R |
New Roller Assembly Component Part Numbers
| ITEM NO. | PART NO. | DESCRIPTION | QTY. |
|---|---|---|---|
| 1 | 76010-042 | A4 ROTOR BODY | 1 |
| 2 | 76002-038 | SPIDER RING | 1 |
| 3 | 90011-267 | 10-32 CAPTIVE SCREW | 2 |
| 4 | 71010-771 | ARM ROLLER GUIDE ASSY | 2 |
| 5* | 71010-766 | ARM ROLLER A4 NL/NP ASSY | 2 |
| 5* | 71010-767 | ARM ROLLER A4 TH/TK/TKK/THH ASSY | 2 |
| 5* | 71010-768 | ARM ROLLER A4 NH/NK/NJ/NHH/NHL/ NHHL ASSY | 2 |
| 5* | 71010-769 | ARM ROLLER A4 NKL/ NKKL ASSY | 2 |
| 5* | 71010-770 | ARM ROLLER A4 GH/GK/GKK ASSY | 2 |
*Available tubing options
