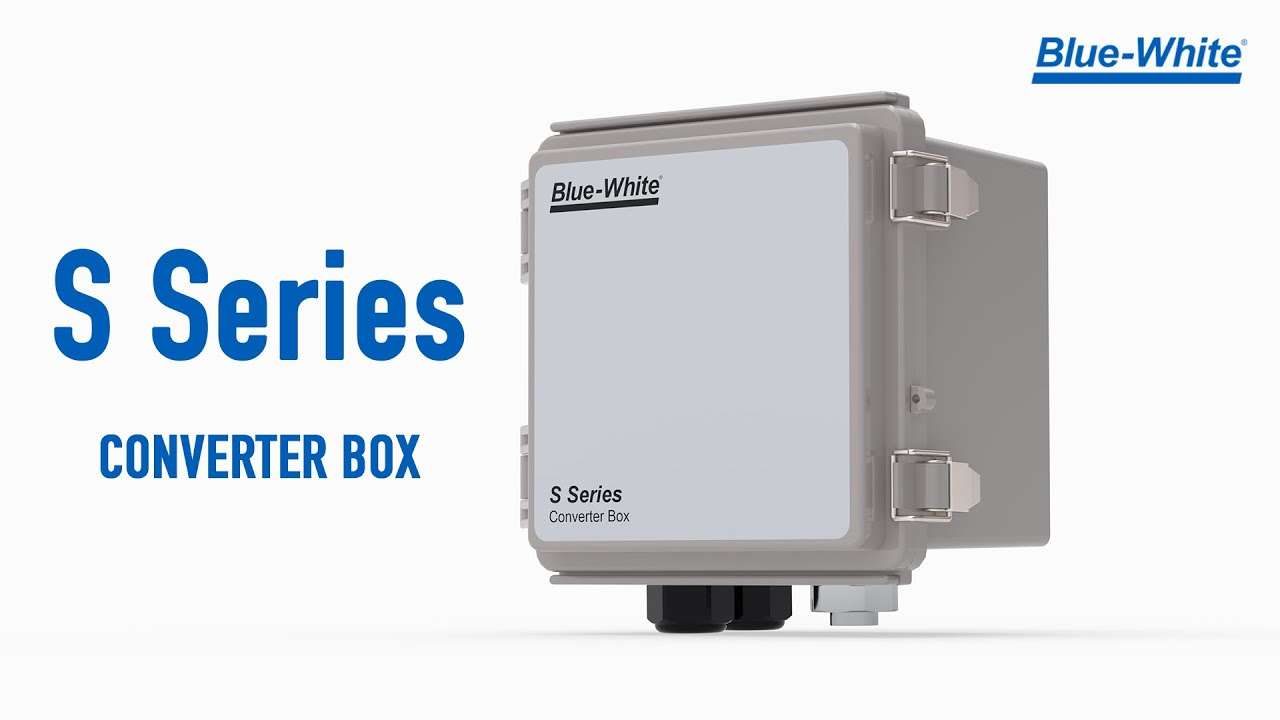

S Series Converter Box
Converts conduit signal wiring to M12 cable wiring
The S Series Converter Box is a junction box specifically designed to ease the installation of our S Series chemical metering pumps in applications where the conduit runs to the pump. The S Series Converter Box will convert conduit signal wiring to M12 cable wiring.
Simplify your installation with The S Series Converter Box from Blue-White.
Technical Overview:
Enclosure
NEMA 4X
Connection
Pre-wired M12 Cables
Warranty
1 Year
Chemical Resistance
Acceptable in chemical areas
Simple
Works with all "S" series pumps
Mounting
Simple and Maintenance Friendly
Literature
Converter Box Literature
3D Visualizer
[bwi-visualize product="converter-box"]
Features
- Simple pre-wired junction box for wiring “S” Series Pumps.
- Comes with Six M12 cables.
- Accepts incoming 1/2” conduit.
- Simplifies installation when transitioning from legacy pumps, or replacing pumps that have integral conduit connections.
- Easy to order with “S” Series pumps
What’s Included
- Converter Box
- M12 Cables, IP 67, 10 ft length ( Qty 6 pre-installed)
- Four (4) mounting tabs included
Specifications
Part Number
- CB-1SX
Compatible with Pump Models
- A3S, A4S, A5S FLEXFLO® Peristaltic Pumps
- M3S, M4S, M5S FLEXFLO® Peristaltic Pumps
Cables
- M12 Cables, IP 67, 10 ft length ( Qty 6 pre-installed)
Material
- NEMA 4X Box (Polycarbonate/Fiberglass)
Mounting
- Four (4) mounting tabs included
Shipping Weight
- 10 lbs.
Videos
Downloads
Title | Size | Update Date | Download |
---|---|---|---|
Converter Box Technical Data Sheet – 85000-192 |
496.16 KB | August 3, 2023 | Download |
