F-1000

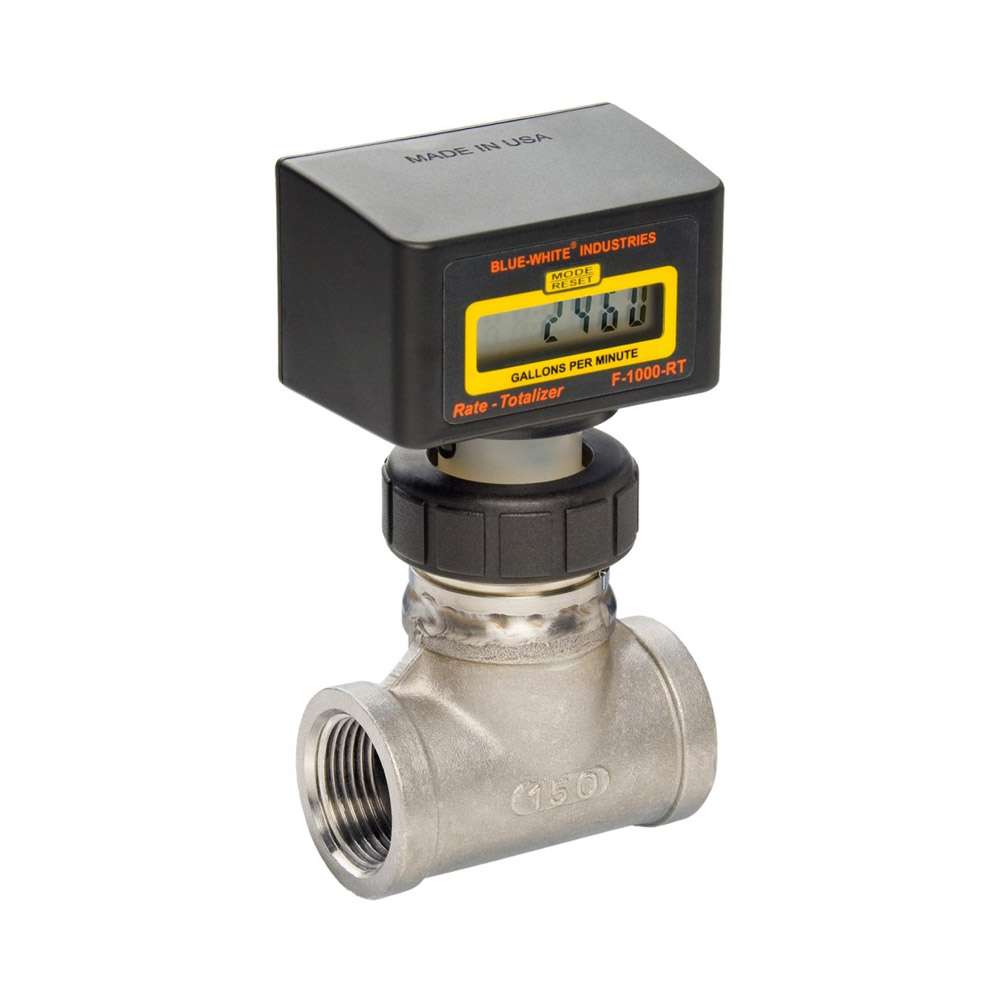

BW DIGI-METER® Digital Paddlewheel Flow Meter
Blue-White’s BW DIGI-METER® F-1000 series requires no electrical connection, is easy to install, and is ideal for those who require clear, easy-to-read flow rates. The F-1000 is shipped pre-programmed, all you need to do is install it. The meter is powered with two (2) (AAA) batteries which are supplied with the unit.
Model variations include:
RB = Rate only
TB = Total only
RT = Rate, and totalizer
Technical Overview:
GPM
.4 - 8000
LPM
1 - 27000
PSI
300
Bar
20
Fahrenheit (°F)
200
Celsius (°C)
93
Body Material
PVC, PVDF
Pipe Sizes
⅜”, up to 12”
Literature
F-1000 Literature
Instruction Manuals
F-1000 Instruction Manual - 80000-335F-1000 | F-2000 Pipe Fitting Instruction Manual – 80000-389
Technical Data Sheets
F-1000 Technical Data Sheet - 85000-170Features
Benefits:
- Easy to read 6 digit LCD, up to 4 decimal positions
- Battery Operated (2 AAA batteries included)
- Acceptable for Vertical or Horizontal installation
- Total Reset function can be disabled
- Display update time: Rate 1.5 sec., Total 0.5 sec.
- Factory calibrated – Nothing to program
- NEMA 4X weather resistant enclosure
- LCD not recommended for direct sunlight exposure
- Standard Models ship with pipe fitting included.
Available Models
Molded Fittings
| GPM | 0.4 – 200 | Pipe Sizes | ⅜”, ½”, ¾”, 1″, 1½”, and 2″ male NPT |
|---|---|---|---|
| LPM | 1 – 750 |
Max. Working Pressure:
- 300 psig (20 bar) @ 70°F (21°C)
Max. Fluid Temperature:
- 200° F (93° C) @ 0 PSI
Full Scale Accuracy:
- +/- 2%
Sensor/ Paddle/ Axel Material:
- PVDF
O-ring Material:
- FKM
Max. Pressure Drop:
- 8 psi (varies per model)
Approx. Shipping Weight:
- 2 lb. (0.91 kg)
Saddle Mount Fittings
| GPM | 15 – 8,000 | Pipe Sizes | 1½”, 2″, 2½”, 3″, 4″, 6″, 8″, 10″, 12″ |
|---|---|---|---|
| LPM | 70 – 27,000 |
Max. Working Pressure:
- 300 psig (20 bar) @ 70°F (21°C)
Full Scale Accuracy:
- +/- 2%
Sensor/ Paddle/ Axel Material:
- PVDF
O-ring Material:
- FKM
Max. Pressure Drop:
- 0 psi (no significant pressure drop)
Approx. Shipping Weight:
- 2 lb. (0.91 kg)
Max. Fluid Temperature:
- 200° F (93° C) @ 0 PSI (PVDF sizes)
- 140°F (60°C) @ 0 PSI (PVC sizes)
Saddle Material:
- PVDF (1½”, 2″, 3″, 50mm, 63mm, 90mm sizes)
- PVC (all other sizes)
Solvent Weld PVC Fittings
| GPM | 6 – 600 | Pipe Sizes | 1″, 1½”, 2″ and 3″ |
|---|---|---|---|
| LPM | 25 – 2300 |
Max. Working Pressure:
- 200 psig (13.8 bar) @ 70°F (21°C)
Max. Fluid Temperature:
- 140° F (60° C) @ 0 PSI
Full Scale Accuracy:
- +/- 2%
Sensor/ Paddle/ Axel Material:
- PVDF
O-ring Material:
- FKM
Max. Pressure Drop:
- 0 psi (no significant pressure drop)
Approx. Shipping Weight:
- 2 lb. (0.91 kg)
Replacement Parts
